library(glasso)
library(corpcor)
library(Matrix)
library(psych)
library(CVXR)
library(Robocov)
library(CorShrink)
library(corrplot)
library(ggplot2)

Hub network matrix simulation.

hub_sim = function(n, p, block){
  mat <- 0.3*diag(1,block) + 0.7*rep(1,block) %*% t(rep(1, block))
  Sigma <-   bdiag(mat, mat, mat, mat, mat, mat, mat, mat, mat, mat)
  corSigma <- cov2cor(Sigma)
  data <- MASS::mvrnorm(n,rep(0,p),corSigma)
  ll = list("dat" = data, "cor" = corSigma, "Sigma" = Sigma)
  return(ll)
}


nloglik = function(data, cormat){
  llik = 0
  for(m in 1:nrow(data)){
    idx = which(!is.na(data[m,]))
    if(length(idx) > 2){
      llik = llik + emdbook::dmvnorm(data[m, idx], rep(0, length(idx)), cormat[idx, idx], log = T)
    }
  }
  return(-llik)
}

angle_norm = function(S, Sigma){
  dist = 1 - (tr(as.matrix(cov2cor(S)%*%cov2cor(Sigma))))/(norm(cov2cor(S), type = "F")* norm(Sigma, type = "F"))
  return(dist)
}

Data Generation

N=500
P=50
prop_missing = 0.25

ll = hub_sim(N, P, 5)
corSigma = as.matrix(ll$cor)
Sig = as.matrix(ll$Sigma)


data = hub_sim(N, P, 5)$dat

  #######################   Turn some of the entries to NA   ###################################

data_missing = t(apply(data, 1, function(x){
  if(prop_missing > 0){
    rand = sample(1:length(x), floor(prop_missing*length(x)), replace = F)
    y = x
    y[rand] = NA
    return(y)
  }else{
    return(x)
  }}))

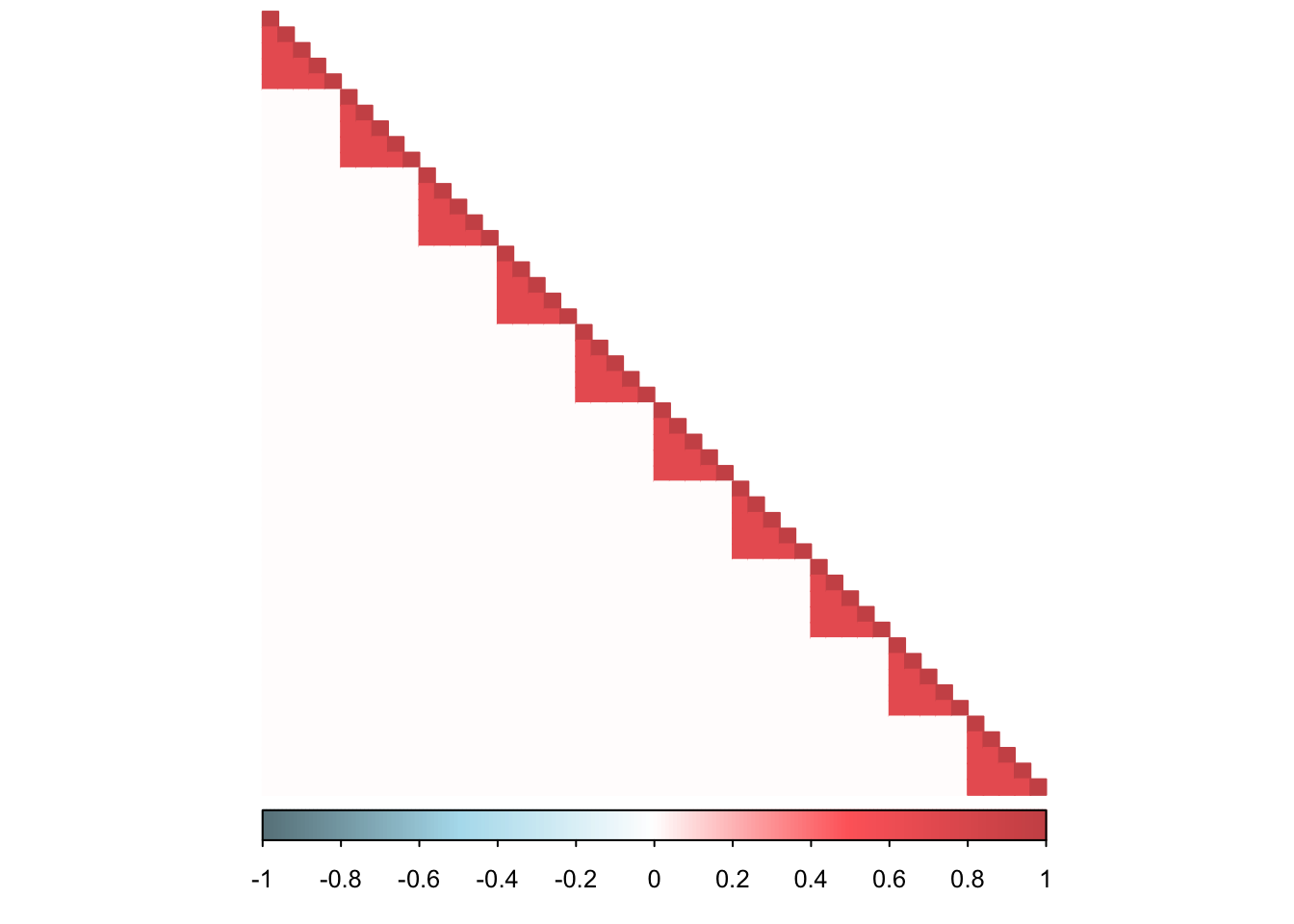

Pop

corrplot(corSigma,  diag = TRUE,
         col = colorRampPalette(c("lightblue4", "lightblue2", "white", "indianred1", "indianred3"))(200),
         tl.pos = "n", tl.col = "black",
         rect.col = "white",na.label.col = "white",
         method = "color", type = "lower", tl.srt=45)

Expand here to see past versions of unnamed-chunk-4-1.png:
Version Author Date
c6c31f2 Kushal K Dey 2020-03-08

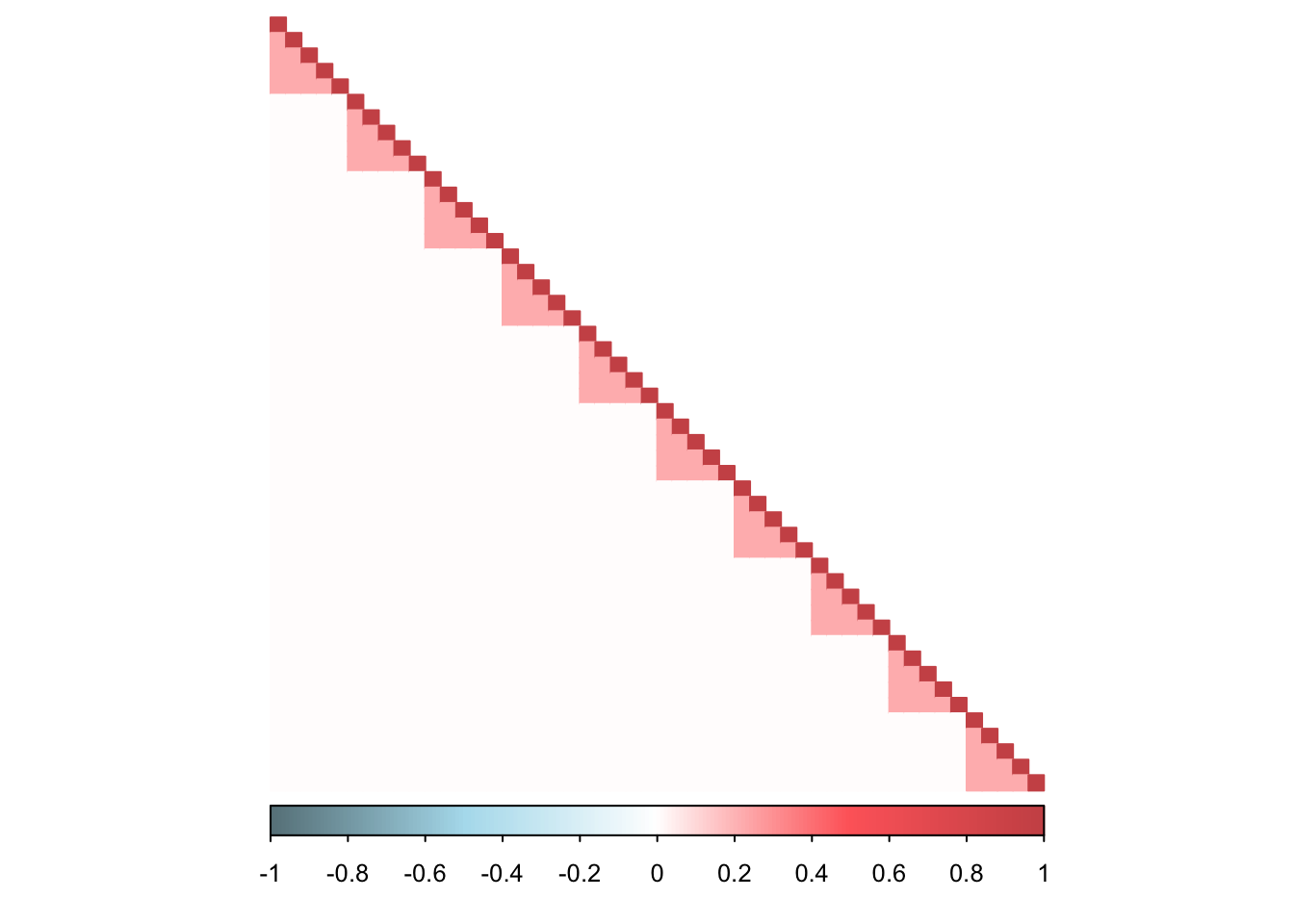

p-Pop

pcorSigma = -cov2cor(as.matrix(solve(corSigma)))
diag(pcorSigma) = 1
corrplot(pcorSigma,  diag = TRUE,
         col = colorRampPalette(c("lightblue4", "lightblue2", "white", "indianred1", "indianred3"))(200),
         tl.pos = "n", tl.cex = 1.5, tl.col = "black",
         rect.col = "white",na.label.col = "white",
         method = "color", type = "lower", tl.srt=45)

Expand here to see past versions of unnamed-chunk-5-1.png:
Version Author Date
c6c31f2 Kushal K Dey 2020-03-08

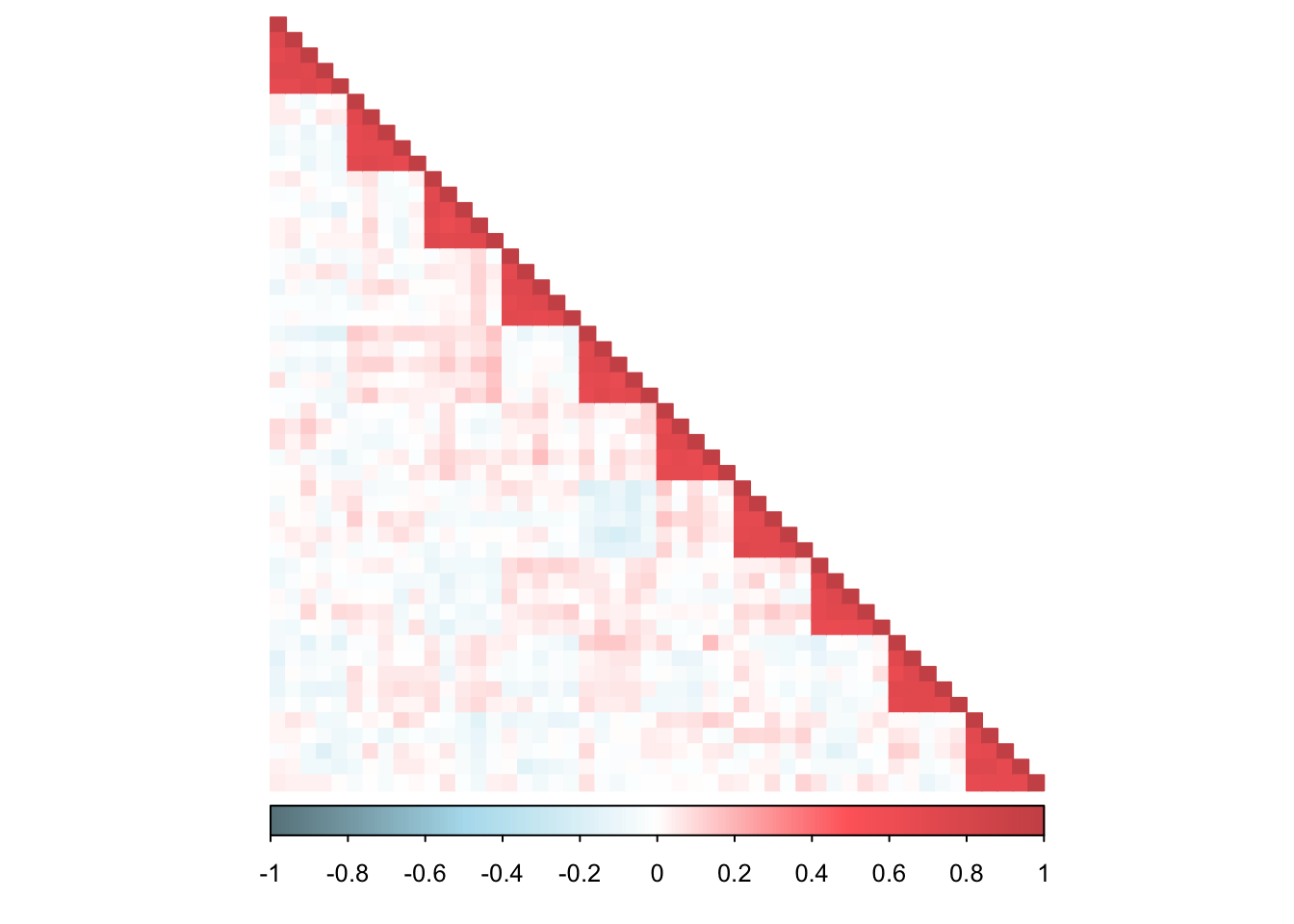

Standard

standard_cor = cor(data_missing, use = "pairwise.complete.obs")
corrplot(standard_cor,  diag = TRUE,
         col = colorRampPalette(c("lightblue4", "lightblue2", "white", "indianred1", "indianred3"))(200),
         tl.pos = "n", tl.cex = 1.5, tl.col = "black",
         rect.col = "white",na.label.col = "white",
         method = "color", type = "lower", tl.srt=45)

Expand here to see past versions of unnamed-chunk-6-1.png:
Version Author Date
c6c31f2 Kushal K Dey 2020-03-08

Robocov-box

robocov_box_cor = Robocov_cor(data_with_missing = data_missing, loss = "lasso")
corrplot(robocov_box_cor,  diag = TRUE,
         col = colorRampPalette(c("lightblue4", "lightblue2", "white", "indianred1", "indianred3"))(200),
         tl.pos = "n", tl.cex = 1.5, tl.col = "black",
         rect.col = "white",na.label.col = "white",
         method = "color", type = "lower", tl.srt=45)

Expand here to see past versions of unnamed-chunk-7-1.png:
Version Author Date
c6c31f2 Kushal K Dey 2020-03-08

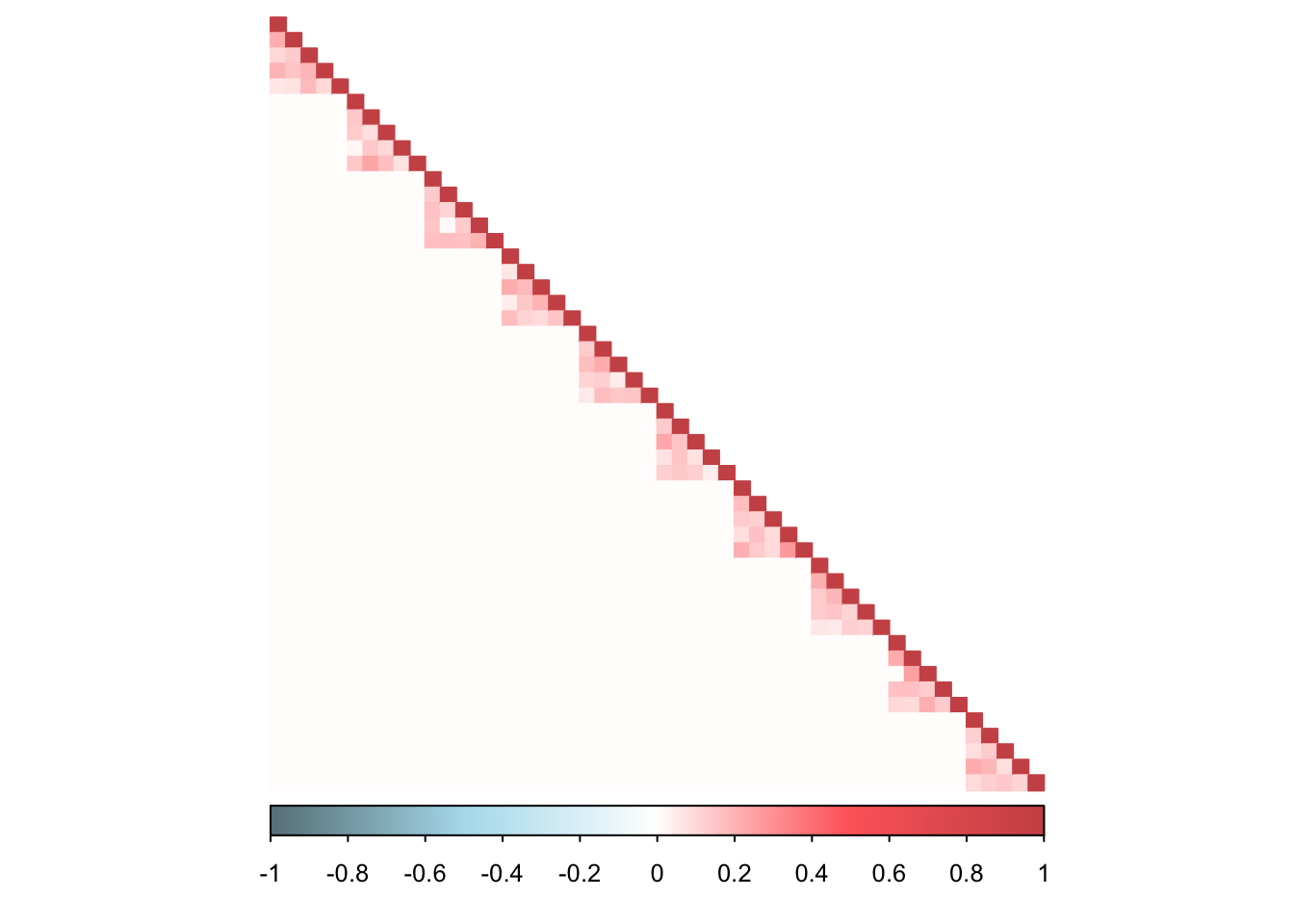

p-Robocov

robo_prec = Robocov_precision(data_with_missing = data_missing, alpha = 0.1, lambda=1)
corrplot(robo_prec,  diag = TRUE,
         col = colorRampPalette(c("lightblue4", "lightblue2", "white", "indianred1", "indianred3"))(200),
         tl.pos = "n", tl.cex = 1.5, tl.col = "black",
         rect.col = "white",na.label.col = "white",
         method = "color", type = "lower", tl.srt=45)

Expand here to see past versions of unnamed-chunk-8-1.png:
Version Author Date
c6c31f2 Kushal K Dey 2020-03-08

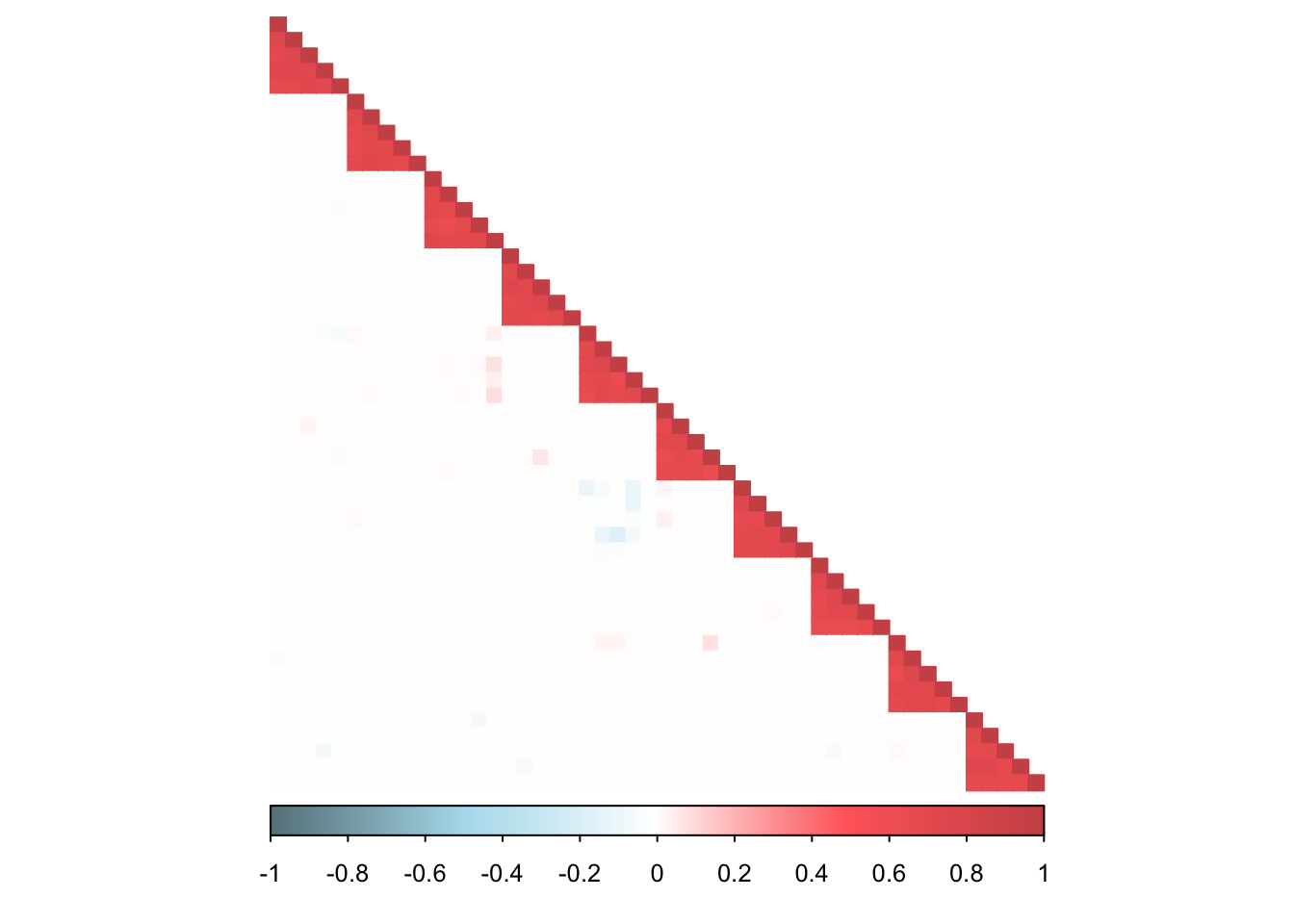

CorShrink

cov_sample_ML <-  CorShrinkData(data_missing, sd_boot = FALSE,
                                  ash.control = list())
corshrink_cor = cov2cor(cov_sample_ML$cor)
corrplot(corshrink_cor,  diag = TRUE,
         col = colorRampPalette(c("lightblue4", "lightblue2", "white", "indianred1", "indianred3"))(200),
         tl.pos = "n", tl.cex = 1.5, tl.col = "black",
         rect.col = "white",na.label.col = "white",
         method = "color", type = "lower", tl.srt=45)

Expand here to see past versions of unnamed-chunk-9-1.png:
Version Author Date
c6c31f2 Kushal K Dey 2020-03-08
